Máquina de Engarce para Cable Coaxial IPEX WPM-IPEX
Máquina de Engarce para Cable Coaxial IPEX WPM-IPEX Thumb Máquina de Engarce para Cable Coaxial IPEX WPM-IPEX Thumb
Video Thumbnail

Máquina de Engarce para Cable Coaxial IPEX WPM-IPEX

  • Modelo del producto: WPM-IPEX

  • Especificaciones

    Modelo: WPM-IPEX
    Rango de diámetro de cable: 0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm
    Eficiencia: 2200 pcs/h
    Presión de trabajo: 0.5~0.7 MPa (5~7 bar)
    Alimentación eléctrica: AC220~240V, 50~60Hz, 300VA
    Nivel de ruido:
    Dimensiones: 350mm x 260mm x 200mm
    Peso: 4 kg
  • Solicitar presupuesto ahora

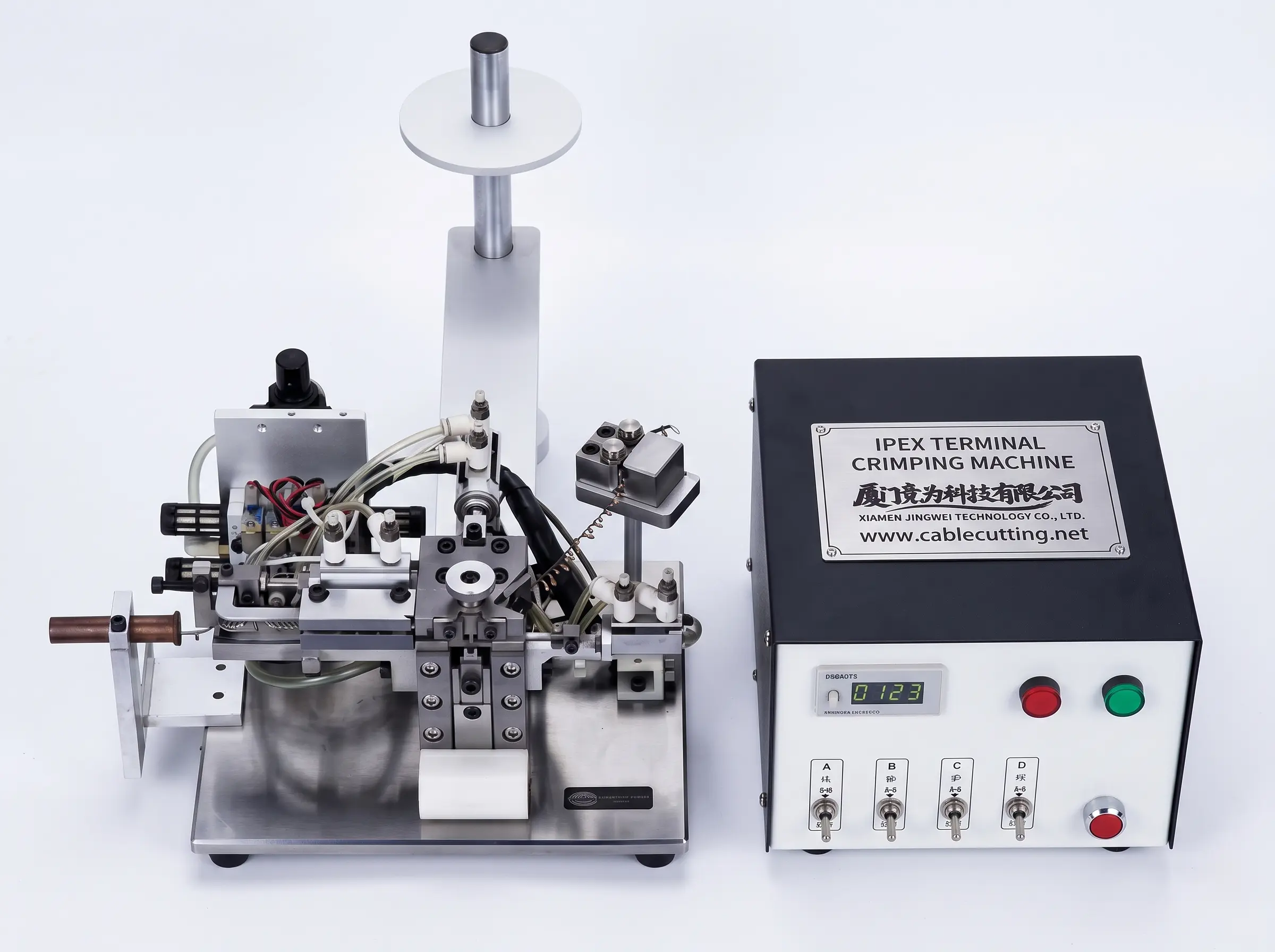

IPEX Terminal Crimping Machine
Production description
1. The machine model specialized for coaxial cable crimping molding style, generous,energy-saving, and stable. design, connecting coaxial cable, and the appearance design is beautiful
2. Use for series special terminal, Cutting, Moulding, and Crimping complete together.
3. The machine adopts Japan SMC pneumatic components, more reliable, and sturdy.
4. The machine's electrical unit adopts modular parts, saving more and more energy&stable.

Application range
This machine is used for a special machine of I-PEX series precision connector terminal Moulding&Crimping. Furthermore, be suitable for molding the other associated connector terminal.

Function
The machine is according to different terminals corresponding to the coaxial cable outer diameters models, such as 1.13mm,1.32mm,1.37mm,1.78mm, and 0.81mm each. At the same time, the machine is compact and portable, the PLC control operation is simple, and can be converted to manual/automatic.

Technical Specifications

Applicable coaxial cable outer diameter range  1.13mm、 1.32mm、1.37mm、1.78mm、0.81mm
Production efficiency  2200pcs/h
Pressure  0.5~0.7Mpa （5~7bar）
Power requirements  AC220~240V,50~60HZ;300VA
Noise  <70d B (A)
Size  350mmx260mmx200mm


result display of IPEX Coaxial cable crimping machine, rg6 coaxial cable and connector crimping machine

<>
IPEX Coaxial Cable Crimping Machine
